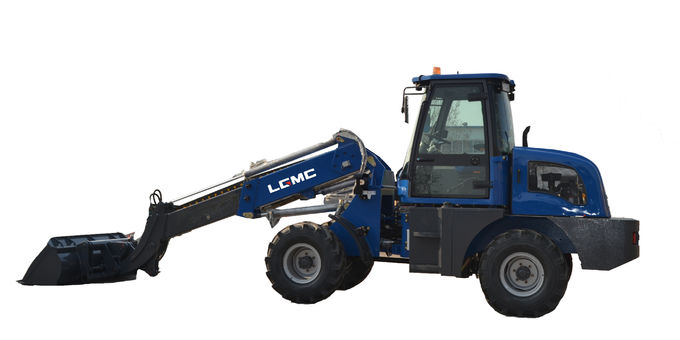

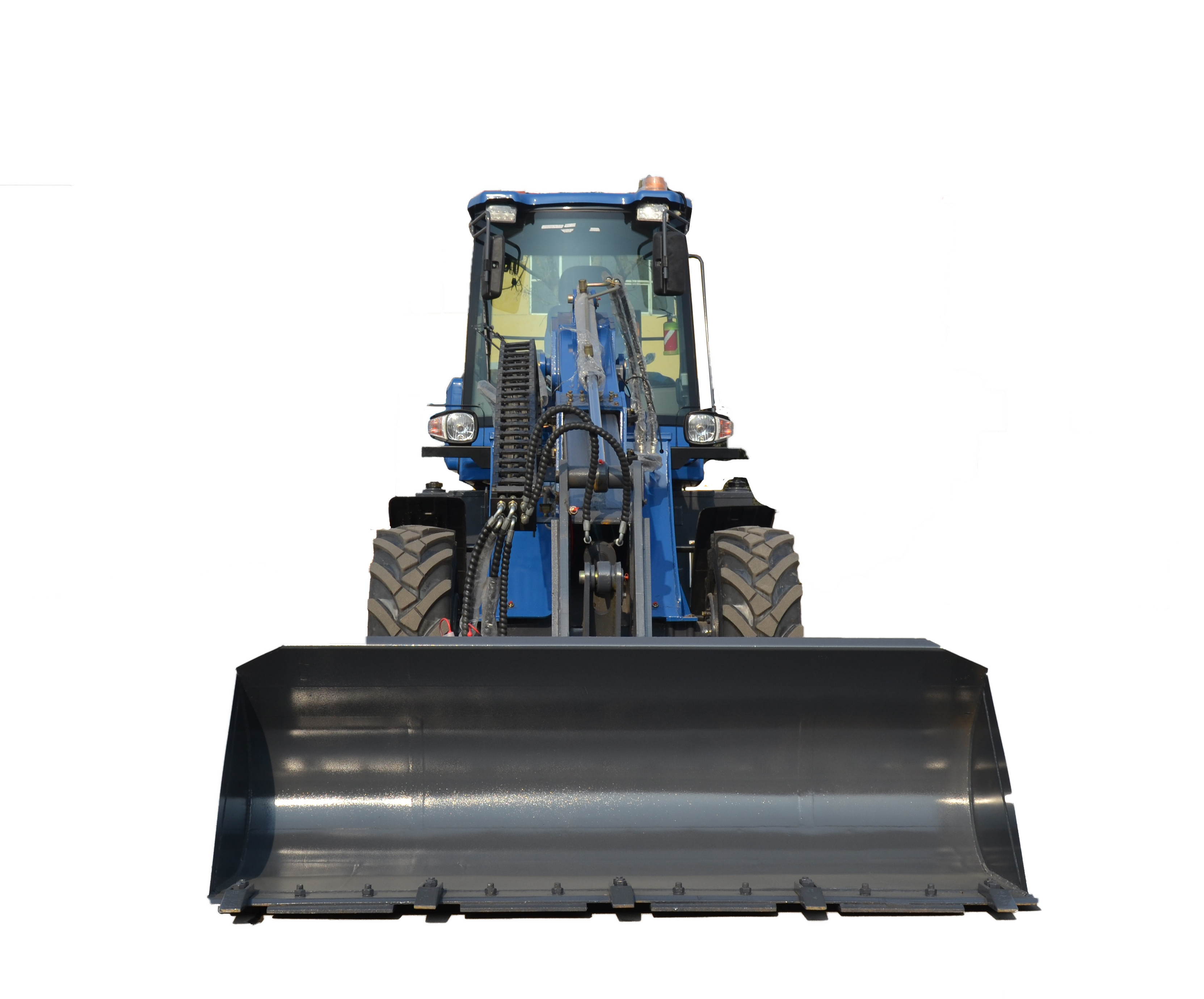

TL15 1.6Ton Telescopic Wheel Loader 37KW Small Size Wheel Loader
for constructional home use
TL15 1.6Ton Telescopic Wheel Loader Small Size Wheel Loader For
Constructional Home Use
Product Description:
· Place of Origin: China
· Model Number:TL15
· Name:MINI WHEEL LOADEER
· Warranty: 3 Months
· Delivery: 30-45 Working Days
· Stock quantity: available
Packaging & Delivery :
Packaging Details: Container
Port: QINGDAO
PAYMENT: 30% AS DEPAOISTS ,THE BALANCE SHOULD PAID BEFORE SHIPMENT.
1. The telescopic boom which can reach 4.2m greatly increase it's
working scope.
2. The articulated structure and axle transmission design makes it
powerful and has better pass through ability
3. The seals, valve & joystick are famous oversea products which
guarantee that it's a reliable long lasting machine.
4. Adjustable spring seat and optional air conditioner makes the
operating more comfortable.
5. Quick coupling system, joystick and buttons makes the operating
easy and convenient.
1.0 Engine Details
(1) Model: Xinchai 498/yunnei engine 42kw.
(2) Engine type:In-line arrangement, water-cooled, four-cycle
diesel Engine
(3) Rated Power:37KW (50.32H.P.)
(4) Rated Speed:2400 r/p.min (rpm)
(5) Fuel Consumption ratio in standard working condition: 205g/kw.h
2.0 Transmission System
Hydraulic converter + drive shaft + axles
3.0 Bucket
(1) Bucket Capacity: 0.60-0.80m3
(2) Bucket width: 1800mm
(3) Bucket type:Heavy-duty bolt on teeth
(5) Rated Load: 1600kg including attachment
4.0 Overall Dimensions
(1) Overall Length: 4390mm
(2) Overall Height:2720mm
(3) Overall Width: 1870mm
(4) Max. lifting Height:4250mm
5.0 Operating Specifications
(1) Steering System: Articulated Frame with hydraulic power
steering
(2) Min Turning Radius: 4950mm
(3) Driving System: Hydraulic converter, four wheel drive
(4) Quick coupling system
(5) Joystick
(6) Self levering
6.0 Brake System
(1) Service Brake:Four Wheel Chuck brake
(2) Parking Brake:Hand operated
7.0 Tyre
(1) Model:20.5-16, 12ply (2)Width: 333mm(3) Diameter: 926mm
8.0 Wheelbase: 2400mm
9.0 Track: 1467mm
10. system pressure:20Mpa; Hydraulic output:92L/min
Our advantages :
1. We can help buyers design specific products or produce products
according to buyers' design.
2. Small order acceptable.
3. Competitive price be offered.
4. Inquiry or question be answered within 12 hours.
5. Best possible after-sales service.
6. We can print logo according to buyers' requirement.
7. Stock an extensive range of spare parts.
8. Favourable geographical location.
9. Flexible pricing, offers discount and deferred payment for
wholesale buyers.
10. Timely delivery.
FAQ:
Q1. Could you custom products?
A: We can manufacture it according to your drawings or samples.
Q2. What's your payment terms.
A: By T/T or Western Union, 100% in advance. ( large orders can be
negociated)
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: 1-3 working days in general, and 7-10 days for large orders.
Q5. How can you guarantee the quality?
A: One year's warranty against B/L date.If You meet with quality
problem, we promise to responsible for it.
Q6: Can we buy 1 pc of each item for quality testing?
A: Yes, we understand quality test is important and we are glad to
send 1pc for quality testing.
