    0.65m3 YN25GB Engine 4 Ton Mini Front Wheel Loader

    Ask Lasest Price
    Brand Name : LGMC
    Model Number : TL20T
    Certification : ORIGINAL or OEM
    Price : Negotiated price
    Payment Terms : T/T, Western Union,Paypal, L/C
    Supply Ability : 600 pieces per month
    Delivery Time : 5-15days
    • Product Details
    • Company Profile

    0.65m3 YN25GB Engine 4 Ton Mini Front Wheel Loader

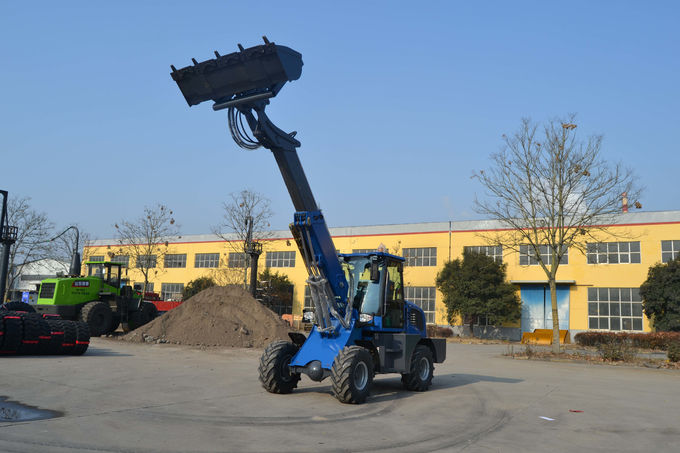

    TL20T 4Ton Front Mini Wheel Loader for Telescopic Small Domestic Loader Small size wheel loader

    TL20T 4Ton Front Mini Wheel Loader for Home Small Domestic Loader Small size wheel loader

    Product Description:

    · Place of Origin: China

    · Model Number:TL20T

    · Name:MINI WHEEL LOADEER

    · Warranty: 3 Months

    · Delivery: 30-45 Working Days

    · Stock quantity: available


    Packaging & Delivery :


    Packaging Details: Container

    Port: QINGDAO
    PAYMENT: 30% AS DEPAOISTS ,THE BALANCE SHOULD PAID BEFORE SHIPMENT.


    DescriptionParameters




    4.2ton
    Telescopic Loader

    Details as in the form
    Yunnei 37KW engine with air pump,
    Isuzu disc brake axle,
    mechanical control,
    rear view camera,
    adjustable dash board and seat,
    23.5/70- 16 herringbone tyre,
    four wheel drive,
    heater,
    quick hitch,
    Standard bucket with teeth,
    full hydraulic torque converter

















    LGE20

    1.0 Engine4.0 Bucket:
    (1) Brand/Model:Yunnei YN25GB(1) Capacity:0.65 m³
    (2) Type:In-line arrangement, water-cooled, four cylinder, diesel engine(2) Width:1800mm
    (3) Rated Power:37KW(3) Type:Heavy-duty bolt on teeth
    (4) Optional Model:XINCHAI engine;(4) Max. Load:1500kg including bucket or attachment
    XICHAI engine;
    YANMAR engine;5.0 Operating Specifications
    EPA4/Euro4 HATZ engine;EPA4(1) Steering System:Articulated hydraulic steering
    EPA4 KOHLER engine;EPA4
    CUMMINS engine;EPA4(2) Driving System:Four wheel drive
    2.0 Overall Dimensions(3) Hydraulic quick releaseYes
    (1) Overall Length:5800mm
    (2) Overall Width:1800mm(4) Mechanical pilot joystickYes
    (3) Overall Height:2680mm
    (4) Bucket hinge pin Height:4100mm(5) Steady riseYes
    6.0 Brake System
    (5) Telescopic stroke1100mm(1) Service Brake:Four wheel disc brake
    (2) Parking Brake:Disc brake
    (6) Extend the arm length2950mm7.0 Tyre
    (1) Model:23.5/70- 16
    (7) Bucket Max.lift height4700mm(2) Size:Width: 330mm Diameter: 920mm
    (3) Optional Model:31*15.5- 15 tubeless tire
    (8) Bucket Max. unloading height3500mm8.0 Wheel base: 2355mm
    9.0 Track: 1415mm
    3.0 Transmission System:10. System pressure:16Mpa
    Gearbox+Hydraulic converter + Drive shaft + Isuzu axles(Disc brake)
    11. Weight:4200KG
    Optional Hub reduction axle(Disc brake)

    0.65m3 YN25GB Engine 4 Ton Mini Front Wheel Loader
    0.65m3 YN25GB Engine 4 Ton Mini Front Wheel Loader
    0.65m3 YN25GB Engine 4 Ton Mini Front Wheel Loader0.65m3 YN25GB Engine 4 Ton Mini Front Wheel Loader0.65m3 YN25GB Engine 4 Ton Mini Front Wheel Loader0.65m3 YN25GB Engine 4 Ton Mini Front Wheel Loader

    Our advantages :
    1. We can help buyers design specific products or produce products according to buyers' design.
    2. Small order acceptable.
    3. Competitive price be offered.
    4. Inquiry or question be answered within 12 hours.
    5. Best possible after-sales service.
    6. We can print logo according to buyers' requirement.
    7. Stock an extensive range of spare parts.
    8. Favourable geographical location.
    9. Flexible pricing, offers discount and deferred payment for wholesale buyers.
    10. Timely delivery.
    FAQ:
    Q1. Could you custom products?
    A: We can manufacture it according to your drawings or samples.
    Q2. What's your payment terms.
    A: By T/T or Western Union, 100% in advance. ( large orders can be negociated)
    Q3. What is your terms of delivery?
    A: EXW, FOB, CFR, CIF, DDU.
    Q4. How about your delivery time?
    A: 1-3 working days in general, and 7-10 days for large orders.
    Q5. How can you guarantee the quality?
    A: One year's warranty against B/L date.If You meet with quality problem, we promise to responsible for it.
    Q6: Can we buy 1 pc of each item for quality testing?
    A: Yes, we understand quality test is important and we are glad to send 1pc for quality testing.
