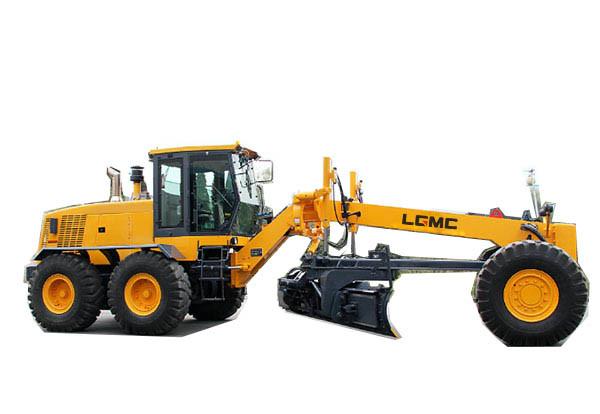

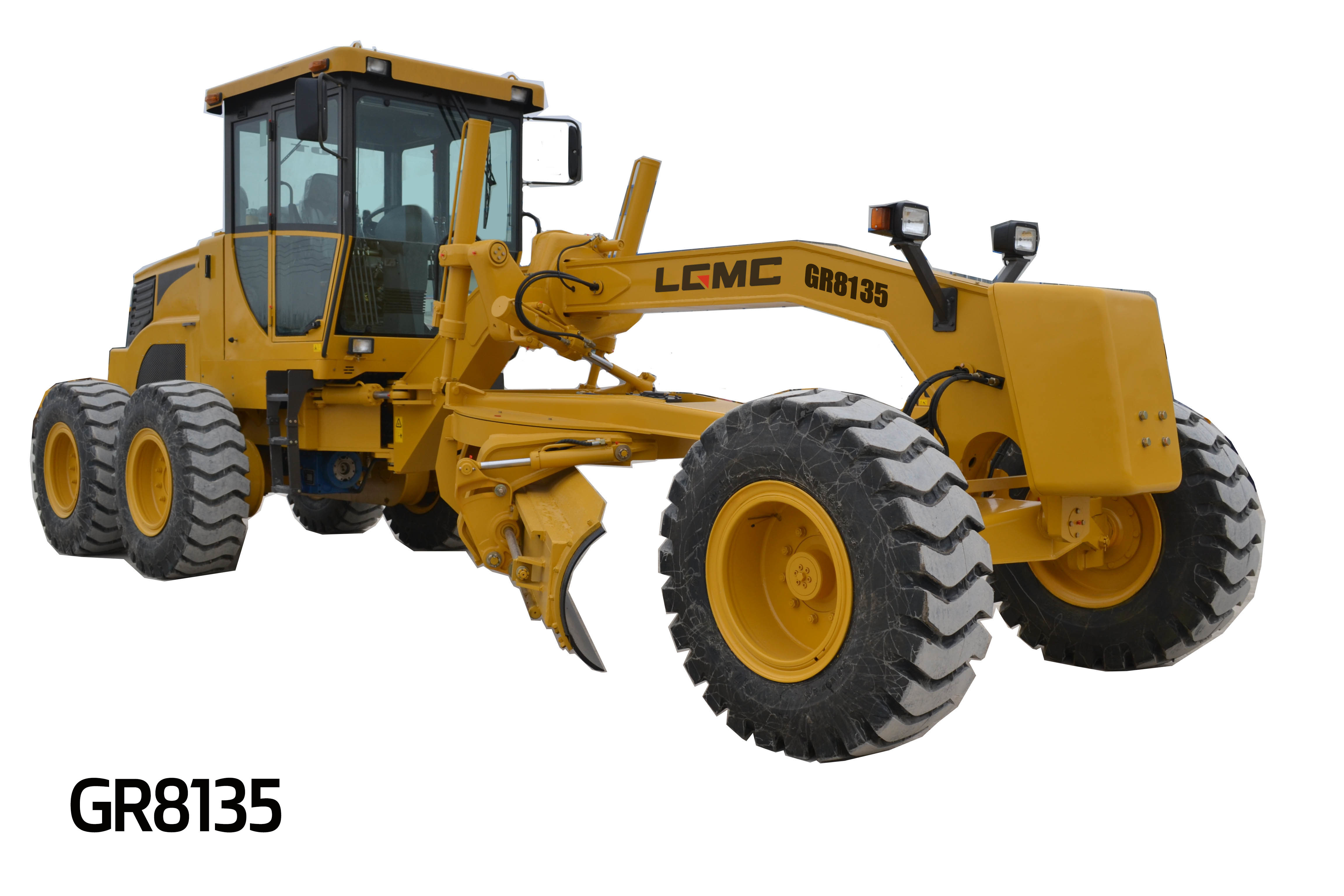

LGMC GR8135 Motor Grader 6BT5.9 Cummins Engine Diesel Engines
Turbocharged Water-Cooled With Powerful Energy
Product Description:
· Place of Origin: China
· Model Number:GR8135
· Name: Construction Motor Grader
· Warranty: 3 Months
· Delivery: 10-15 Working Days
· Stock quantity: available
Packaging & Delivery :
Packaging Details: Container
Port: QINGDAO
PAYMENT:30% AS DEPAOISTS ,THE BALANCE SHOULD PAID BEFORE SHIPMENT.
Motor grader is suitable for large-scaled and leveling in
foundation constructions. Our hydraulic motor graders can be used
for ditching /grading / slope scraping/ bulldozing/ ripping/ virgin
land scarifying and snow-removing etc., which is modernized
construction equipment of multi –functions and high-efficiency for
high-class highway, railway, airport, harbors, dams, industrial
ground and farmland.
It can complete the important content field of highway, farmland
and other large areas of ground leveling and ditching, scraping
slope, bulldozing, snow, loose, compaction, cloth, mixing, help to
load and open land and other work. It is an important equipment in
national defense engineering, mine construction, road construction,
water conservancy construction and farmland impro
| Model | GR135 |
| Basic Specification | Engine Model | | 6BT5.9 |
| Rated Power/Speed | kw/rpm | 100/2200 |
| Dimension | mm | 8015x2380x3050 |
| Operating Weight | kg | 11000 |
| Performance Specification | Travelling Speed, Forward | km/h | 5,8,13,20,30,42 |
| Travelling Speed, Reverse | km/h | 5,13,30 |
| Tractive Force | KN | 61.3 |
| Max. Grade ability | % | 20 |
| Tire Inflation Pressure | Kpa | 300 |
| Working Hydraulic Pressure | Mpa | 16 |
| Transmission Pressure | Mpa | 1.3~1.8 |
| Operating Specification | Max. Steering Angle for Front Wheels | ° | ±49 |
| Max. Lean Angel of Front Wheels | ° | ±17 |
| Max. Oscillation Angel of Front Axles | ° | ±15 |
| Max. Oscillation Angle of Balance Box | ° | 前后16 |
| Frame Articulation Angle | ° | ±27 |
| Min. Turning Radius | m | 6.6 |
| Blade | Max. Lift Height | mm | 410 |
| Max. Cutting Depth | mm | 535 |
| Max. Blade Position Angle | ° | 90 |
| Blade Cutting Angle | ° | 54-90 |
| Circle Reversing Rotation | ° | 360 |
| Moldboard Width*Height | mm | 3710x610 |
Our advantages :
1. We can help buyers design specific products or produce products
according to buyers' design.
2. Small order acceptable.
3. Competitive price be offered.
4. Inquiry or question be answered within 12 hours.
5. Best possible after-sales service.
6. We can print logo according to buyers' requirement.
7. Stock an extensive range of spare parts.
8. Favourable geographical location.
9. Flexible pricing, offers discount and deferred payment for
wholesale buyers.
10. Timely delivery.
FAQ:
Q1. Could you custom products?
A: We can manufacture it according to your drawings or samples.
Q2. What's your payment terms.
A: By T/T or Western Union, 100% in advance. ( large orders can be
negociated)
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: 1-3 working days in general, and 7-10 days for large orders.
Q5. How can you guarantee the quality?
A: One year's warranty against B/L date.If You meet with quality
problem, we promise to responsible for it.
Q6: Can we buy 1 pc of each item for quality testing?
A: Yes, we understand quality test is important and we are glad to
send 1pc for quality testing.
