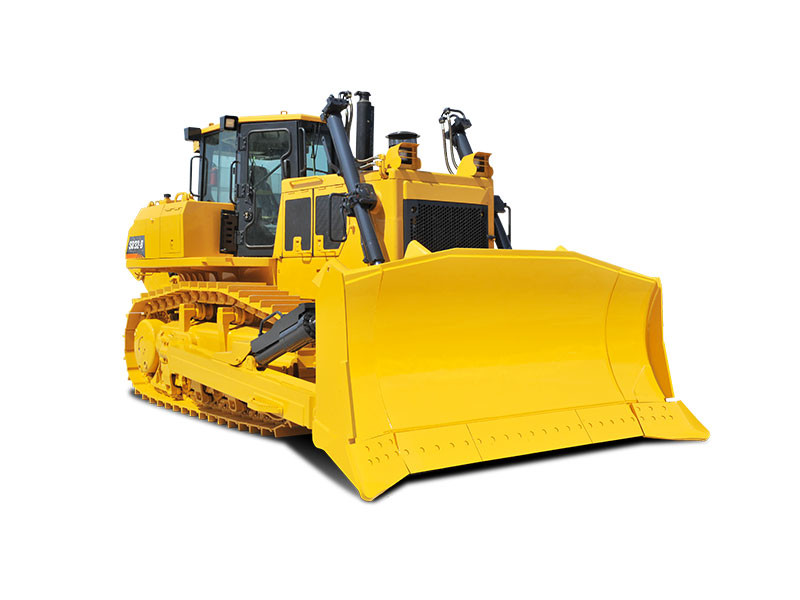

LGMC SD32-8 Crawler Dozer Weicchai EPA Tier 4 final EU StageⅣ
Electronically controlled Engine intelligent system
Product Description:
· Place of Origin: China
· Model Number: SD32-8
· Name: Construction Bulldozer
· Warranty: 3 Months
· Delivery: 10-15 Working Days
· Stock quantity: available
Packaging & Delivery :
Packaging Details: Container
Port: QINGDAO
PAYMENT: 30% AS DEPAOISTS ,THE BALANCE SHOULD PAID BEFORE SHIPMENT.
More efficient modularization
● Power, transmission, chassis and other systems are modular
design, cleanliness is easy to control, easy to component
maintenance. Buffer module installation, block vibration
transmission, improve reliability and comfort. Planetary
deceleration modular final drive, small volume, large speed ratio,
easy to disassemble, favored by foreign users.
Floating is more reliable
● X type suspension support wheel is always in contact with the
chain rail, increase the track ground area, increase the traction
force of the vehicle under the complex road surface. Rubber shock
absorber can slow down the rigid impact of the whole machine and
improve the durability and driving comfort of the components.
Lower emissions, more power
● Electronically controlled engine, emission up to EPA Tier 4
Final/EU StageⅣ standard. Power increased by 9%, torque increased
by 17%, through the overall optimization of the match, the power is
more powerful.
High efficiency, more energy saving
● The use of efficient SCR, DPF and other advanced post-processing
devices, cooling power reduced about 20%, effectively reduce energy
consumption. New automatic gear down function, strong load
adaptability, high working efficiency. Added automatic idle speed
and idle speed extinguishing function, reduce idle energy
consumption, more energy saving.
Easy to maintain, more intelligent
● Visual monitoring and diagnosis system, display with heating
function, can collect multiple sensor signals, add post-processing
(DEF temperature, liquid level) and other monitoring parameters, to
achieve online fault diagnosis, convenient and fast. Temperature
control system added fan reversal function, cleaning radiator core
more convenient. Centralized maintenance on the left rear side,
optimized maintenance window, more convenient maintenance.
Easy to handle, more comfortable
● The use of electronic walking control system, more comfortable
operation. Adopt air suspension seat, three-dimensional air outlet,
fresh air and other systems, more comfortable driving. Integrated
anti-roll cab, better visual field.
| major parameter |
| Minimum ground clearance(mm) | 485 |
| Operation quality(kg) | 39000 |
| Ground specific voltage (kpa) | 0.107 |
| Climbing performance(°) | 30 |
| Center distance of track(mm) | 2100 |
| Single shovel capacity(m³) | 9.7 |
| Spade width/height(mm) | 3955/1149 |
| Maximum depth of cutter cutting(mm) | 540 |
| Maximum lifting height of shovel knife(mm) | 1095 |
| Maximum depth of drop of loafer(mm) | 5360 |
| Maximum lifting height of soil looser(mm) | 592 |
Our advantages :
1. We can help buyers design specific products or produce products
according to buyers' design.
2. Small order acceptable.
3. Competitive price be offered.
4. Inquiry or question be answered within 12 hours.
5. Best possible after-sales service.
6. We can print logo according to buyers' requirement.
7. Stock an extensive range of spare parts.
8. Favourable geographical location.
9. Flexible pricing, offers discount and deferred payment for
wholesale buyers.
10. Timely delivery.
FAQ:
Q1. Could you custom products?
A: We can manufacture it according to your drawings or samples.
Q2. What's your payment terms.
A: By T/T or Western Union, 100% in advance. ( large orders can be
negociated)
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: 1-3 working days in general, and 7-10 days for large orders.
Q5. How can you guarantee the quality?
A: One year's warranty against B/L date.If You meet with quality
problem, we promise to responsible for it.
Q6: Can we buy 1 pc of each item for quality testing?
A: Yes, we understand quality test is important and we are glad to
send 1pc for quality testing.
