LGMC Four Wheel Drive Forklift , CPD20 Shipping Forklift

Product Categories

Guangxi Ligong Machinery Co.,Ltd

Contact Now

LGMC Four Wheel Drive Forklift , CPD20 Shipping Forklift

Ask Lasest Price
Brand Name :	LGMC
Model Number :	CPD20
Certification :	ORIGINAL or OEM
Price :	Negotiated price
Payment Terms :	T/T, Western Union,Paypal, L/C
Supply Ability :	50 pieces per month
Delivery Time :	10-15days

Add to Cart

Product Details
Company Profile

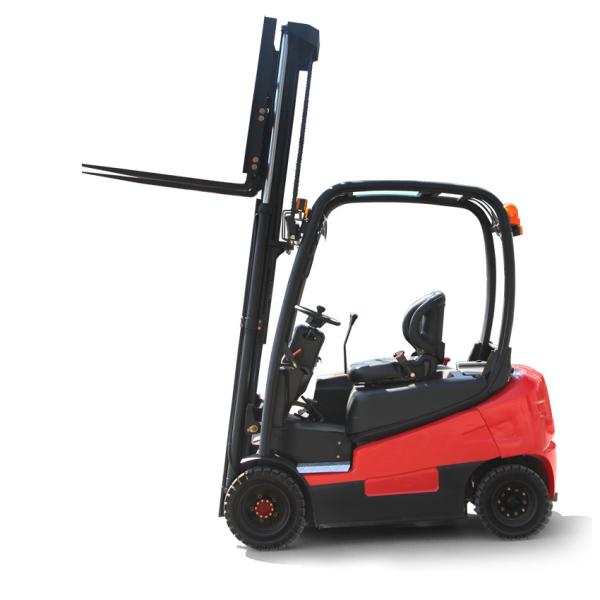

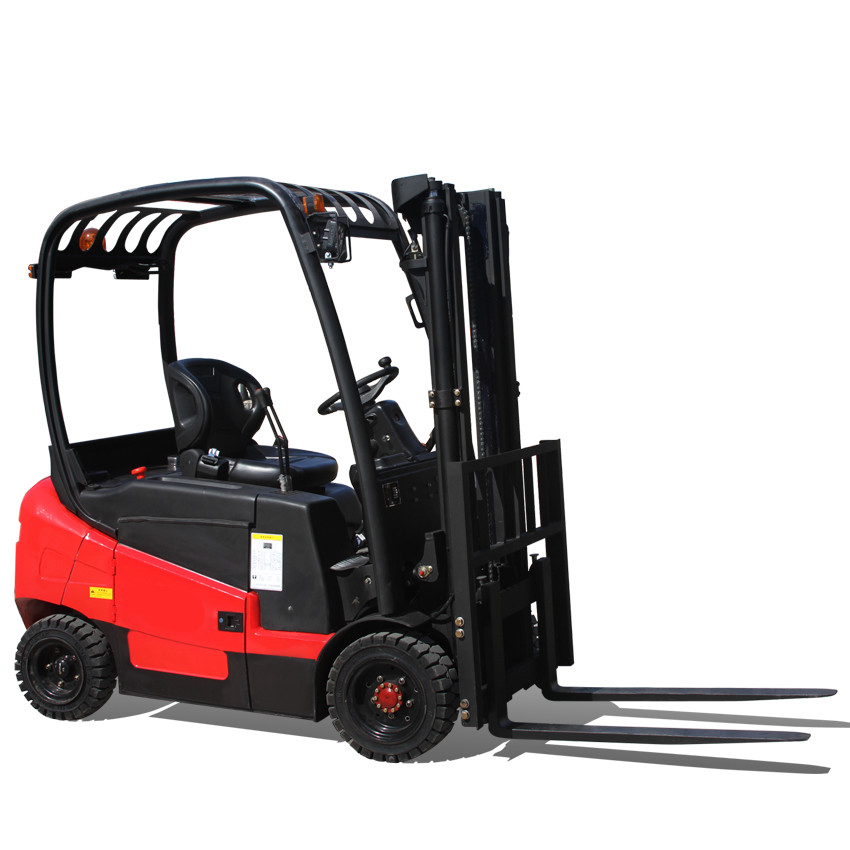

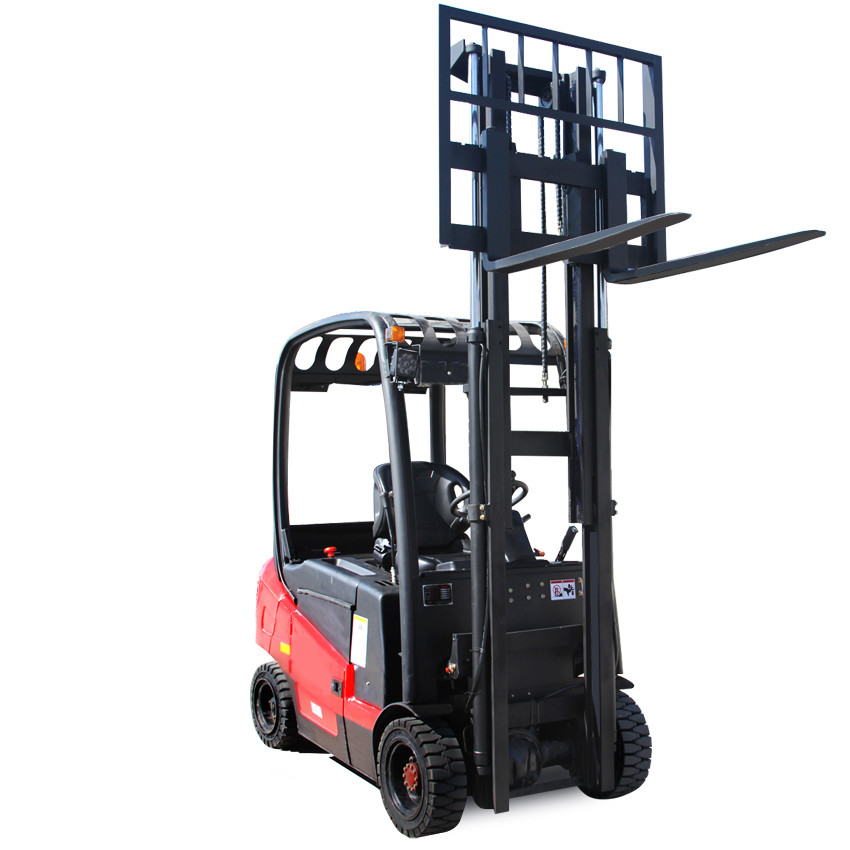

LGMC Four Wheel Drive Forklift , CPD20 Shipping Forklift

LGMC CPD20 Electrical Forklift Green Transport Machine Battery Power

Product Description:

· Place of Origin: China

· Model Number: CPD20

· Name: Electrical Forklift

· Warranty: 3 Months

· Delivery: 10-15 Working Days

· Stock quantity: available

Packaging & Delivery :

Packaging Details: Container

Port: QINGDAO
PAYMENT: 30% AS DEPAOISTS ,THE BALANCE SHOULD PAID BEFORE SHIPMENT.

Electrical Forklift electric motor is the driving force and the battery is the energy source. The carrying capacity is 2 tons, and the working channel width is generally 3.5 ~ 5.0 meters. Because there is no pollution and low noise, it is widely used in the working conditions with high environmental requirements. Since each battery generally needs to be charged after about 8 hours of work, backup batteries are required for multi-shift working conditions.

ELECTRICAL FORKLIFT SPECIFICATIONS
Model			CPD750	CPD10F	CPD10E	CPD15	CPD16	CPD18F	CPD18E	CPD20H	CPD20E	CPD20	CPD25	CPD30	CPD35
Power type			Battery	Battery	Battery	Battery	Battery	Battery	Battery	Battery	Battery	Battery	Battery	Battery	Battery
Rated load		KG	500-750	800-1000	1000	1500	1600	1600-1800	1800	2000	2000	2000	2500	3000	3500
Load center distance		mm	300	400	400	500	500	500	500	500	500	500	500	500	500
Driving type			Seat	Seat	Seat	Seat	Seat	Seat	Seat	Seat	Seat	Seat	Seat	Seat	Seat
Length	With fork L1	mm	2040	2560	2560	3040	3040	3040	3120	3120	3120	3380	3380	3630	3664
Length	Without fork L2		1400	1640	1640	1970	1970	1970	2050	2050	2050	2310	2310	2570	2570
Whole Width B			800	800	800	1000	1000	1000	1050	1050	1050	1150	1150	1243	1243
Height	Height no lifting frame H1		1680	2050	2050	1960	1960	1960	2000	2000	2000	2000	2000	2070	2070
	Top frame height H2		1820	1900	1900	2010	2010	2010	2000	2000	2000	2145	2145	2210	2210
	Max Height working H3		3070	3820	3820	4050	4050	4050	3800	3800	3850	3995	3995	4225	4225
Distance from seat to top light L3			970	970	970	1000	1000	1000	1020	1020	1020	1020	1020	1060	1060
Wheel base L4			860	1020	1020	1260	1260	1260	1400	1400	1400	1515	1515	1680	1680
Front overhang Y			300	300	300	385	350	350	320	320	320	483	483	490	490
Back overhang L5			290	250	250	365	365	365	330	330	330	400	400	425	425
Front wheel tread R			700	700	700	1010	1010	1010	880	880	880	970	970	1000	1000
Back wheel tread P			668	668	668	100	100	100	830	830	830	950	950	980	980
Min Floor clearance F			90	90	90	130	130	130	100	100	100	135	135	135	135
Max lifting height H			2500	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000
Free lifting height H4			80	80	80	40	40	40	80	80	80	170	170	160	160
Fork changing S			703/190	703/190	703/190	1040/200	1040/200	1040/200	925/200	925/200	925/200	1024/200	1024/200	1060/250	1060/250
Min Turning radius WA			1200	1800	1800	2100	2100	2100	1950	1950	1950	2050	2050	2200	2500
Min Right angle aisle width RA			2800	3400	3400	3850	3850	3850	3400	3400	3400	3760	3760	4100	4100
Frame angle a/β		(°)	6°/12°	6°/12°	6°/12°	6/12	6/12	6/12	6°/12°	6°/12°	6°/12°	6°/12°	6°/12°	6°/12°	6°/12°
Max lifting speed without goods		mm/s	400	250	250	300	300	300	350	350	350	400	380	450	425
Max lifting speed with full goods		mm/s	350	220	220	260	260	260	300	300	300	300	280	280	260
Max speed without goods		Km/h	13	12	12	14	14	14	15	15	15	15	15	14	14
Max speed with full goods		Km/h	12	11	11	13	13	13	14	14	14	14	14	12.5	12.5
Max climbing angle		％	≤10	≤10	≤10	≤15	≤15	≤15	≤10	≤10	≤10	≤15	≤15	≤15	≤15
Whole machine weight		Kg	1100	1580	1730	2650	2790	2890	2980	3100	3200	4050	4200	4950	5600
Driving Wheel			2x/2	2x/2	2x/2	2/2	2/2	2/2	2x/2	2x/2	2x/2	2x/2	2x/2	2x/2	2x/2
Tyre model			Solid tyre	Solid tyre	Solid tyre	Solid tyre	Solid tyre	Solid tyre	Solid tyre	Solid tyre	Solid tyre	Solid tyre	Solid tyre	Solid tyre	Solid tyre
Front Tyre			15x4 1/2-8	15x4 1/2-8	15x4 1/2-8	18×7-10	18×7-10	18×7-10	18*7-10	18*7 -10	18*7 -10	7.00-12	7.00-12	28X9-15	28X9-15
Rear Tyre			3.50-5	3.50-5	3.50-5	16×6-8	16×6-8	16×6-8	18*6-8	18*6-8	18*6-8	18x7-8	18x7-8	18x7-8	18x7-8
Hand Brake			Hydraulic Pedal	Hydraulic Pedal	Hydraulic Pedal	Hydraulic Pedal	Hydraulic Pedal	Hydraulic Pedal	Hydraulic Pedal	Hydraulic Pedal	Hydraulic Pedal	Hydraulic Pedal	Hydraulic Pedal	Hydraulic Pedal	Hydraulic Pedal
Brake type			M-Hand	M-Hand	M-Hand	M-Hand	M-Hand	M-Hand	M-Hand	M-Hand	M-Hand	M-Hand	M-Hand	M-Hand	M-Hand
Battery Volt/ capacity		V/Ah	4X12V/140	12Vx4/160	2X24V/150	48V/230	48V/320	48V/320	48/320	48/400	48/400	48/500	48/500	80/500	80/500
Driving motor power		Kw	3.0AC	3.0AC	4.0AC	6.5AC	6.5AC	6.5AC	7.5AC	7.5AC	7.5AC	11AC	11.0AC	16.6AC	16.6AC
pump power		Kw	3.0DC	3.0DC	3.0DC	5.5DC	10AC	10AC	10AC	10AC	10AC	12.0AC	12.0AC	13AC	13AC

LGMC Four Wheel Drive Forklift , CPD20 Shipping Forklift

Our advantages :
1. We can help buyers design specific products or produce products according to buyers' design.
2. Small order acceptable.
3. Competitive price be offered.
4. Inquiry or question be answered within 12 hours.
5. Best possible after-sales service.
6. We can print logo according to buyers' requirement.
7. Stock an extensive range of spare parts.
8. Favourable geographical location.
9. Flexible pricing, offers discount and deferred payment for wholesale buyers.
10. Timely delivery.
FAQ:
Q1. Could you custom products?
A: We can manufacture it according to your drawings or samples.
Q2. What's your payment terms.
A: By T/T or Western Union, 100% in advance. ( large orders can be negociated)
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: 1-3 working days in general, and 7-10 days for large orders.
Q5. How can you guarantee the quality?
A: One year's warranty against B/L date.If You meet with quality problem, we promise to responsible for it.
Q6: Can we buy 1 pc of each item for quality testing?
A: Yes, we understand quality test is important and we are glad to send 1pc for quality testing.
